Galilean Stereoscopic Digital Slit Lamp Biological Microscope Theorized GD9230

Place of Origin China
Brand Name KESHILONG
Certification CE, FDA
Model Number GD9230
Minimum Order Quantity 1pcs
Price Negotiable
Delivery Time 10-20 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 100pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Galilean Stereoscopic Microscope Magnification 3 Steps By Drum Rotation
Theory Biological Microscope Illumination Halogen Lamp
Eyepiece 12.5X PD Adjustment 50~80mm
Fixation Lamp Red LED
High Light

ophthalmology slit lamp

,

led slit lamp

Leave a Message
Product Description

Galilean Stereoscopic Microscope Ophthalmic Slit lamp with Halogen lamp 3 Magnifications GD9230



Feature:

1. All the optical lenses are moistureproof, mildewproof and anti-reflected treated.

2. Large spot diameter, slit length reach to 14mm, more comprehensive view of the eye condition.

3. Multi-coated optical glass technology, imaging is clear and bright, the view field is wide.

4. Osram light bulbs, small heat, high-brightness, spot uniformity.

5. Handrail design, user-friendly and the convenience of patients.

6. All the joints can be connected by accessories with international standards.



Specification:

Property of slit lamp Microscope Type Galilean stereoscopic microscope
Magnification selection 3 steps by drum rotation

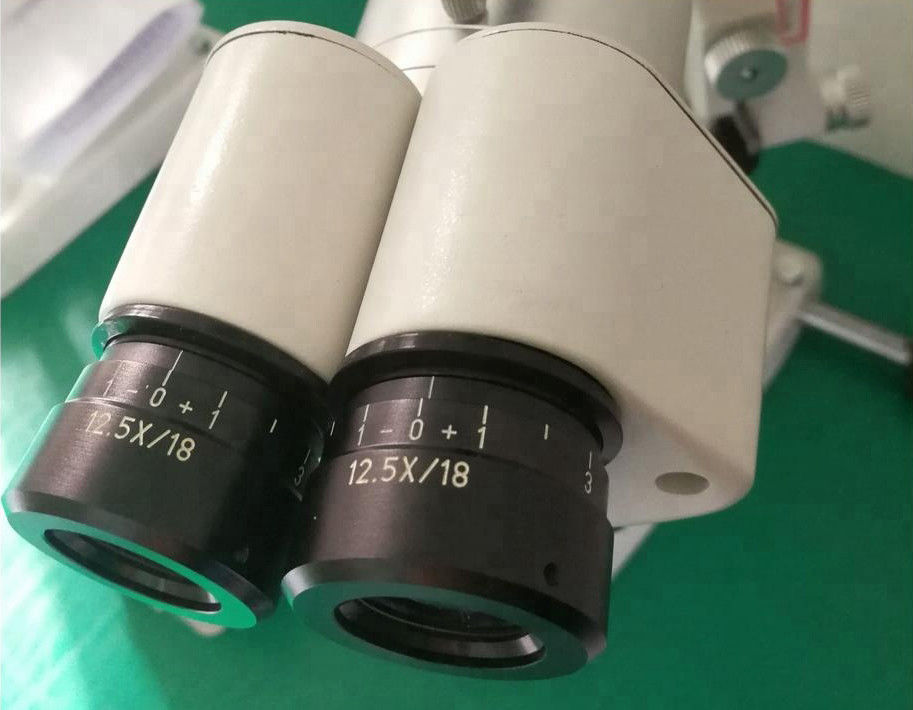

Eyepiece 12.5x

Magnification Ratio

(Field of view )

10×(φ22.5mm),16×(φ14mm),

25×(φ8.8mm)

PD adjustment 50mm ~ 80mm
Diopter Adjustment +7D ~ -7D
Base Left and ritht move 110mm
Dolly move 90mm
Up and down move 30mm
Chin rest Up and down move 80mm
Fixation lamp red LED
Property of illumination Slit width 0 ~ 14mm continuous (at 14mm,slit becomes a circle)
Slit height 1 ~ 14mm continuous

Slit angle

Slit beveling

Light spot diameter

0 ~ 1800 continuous

50,10 °,150,200

14mm ,10mm, 5mm , 3mm ,2mm ,1mm ,0.2mm and 1-14mm continuous

Filter Heat Absorption ,Grey ,Red-Free ,Cobalt Blue
Illumination bulb 12V 50W halogen lamp
Power

Input voltage

frequency

Power consuption



110V/220V AC

50/60 Hz

68VA

Weight and size

G.W

N.W

20kg

16kg

Main dimension

690mm(L)× 440mm(W420mm(H)





Galilean Stereoscopic Digital Slit Lamp Biological Microscope Theorized GD9230 0

Galilean Stereoscopic Digital Slit Lamp Biological Microscope Theorized GD9230 1

Galilean Stereoscopic Digital Slit Lamp Biological Microscope Theorized GD9230 2
