5 Magnifications Digital Data Portable Slit Lamp With Adaptor And Imaging Camera

Place of Origin China
Certification CE, FDA
Model Number GD9254
Minimum Order Quantity 1pcs
Price Negotiable
Delivery Time 10-20 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 100pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Galilean Stereoscopic Microscope Magnification 6X/10X/16X/25X/40X
Theory Biological Microscope Illumination Halogen Lamp
Eyepiece 12.5X PD Adjustment 50~82mm
Fixation Lamp Red LED Illumination Bulb 12V 50W Halogen Lamp
High Light

ophthalmology slit lamp


led slit lamp

Leave a Message
Product Description

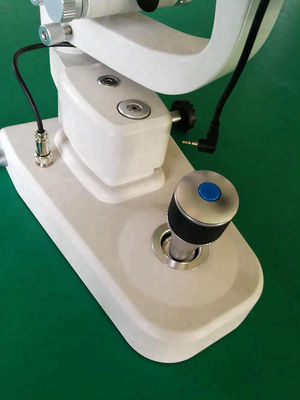

5 Magnifications Digital Data Slit Lamp With Adaptor and Imaging Camera GD9254



1. Professional acquisition media

The machine uses SLR camera as acquisition media, real-

time dynamic display, the image is clear lifelike and it's very quick to image acquisition .

2. Take pictures quickly

With outer shooting device, just run through the lesion site and press the device, clear images captured immediately.

3. Powerful image processing functions

Can be used to measure the length, area, Angle, gray, curvature, etc, and also can mark lesions, add text on the pictures

4. High-definition image

The instrument can take as much as 18 million pixels photos, and provide the highest of 40 times magnification to show the details in micros , meeting the stringent requirements of medical image, will show lesions more clearly.

5. Have the auxiliary function for diagnosis

Offers a variety of common eye disease diagnosis model of parameters Settings, improve the efficiency of the diagnosis.

6. Have medical records management and output

Medical report can be stored, management, and printed



Microscope Microscope Type Galilean stereoscopic microscope
Magnification Selection 5 steps by drum rotation
Eyepiece 12.5x

Magnification Ratio

(Field of view )

Pupillary Adjustment 50mm ~ 82mm
Diopter Adjustment +7D ~ -7D
Base Side Shift 110mm
Depth Shift 90mm
Height Shift 30mm
Chin rest Height Shift 80mm
Fixation Target Red LED



Slit width 0 ~ 14mm continuous (at 14mm,slit becomes a circle)
Slit height 1 ~ 14mm continuous
Slit angle 0 ~ 1800 continuous
Slit Inclination 0 0 ,50,150,200
Diameter of Light Spot 14mm ,10mm,5mm ,3mm,2mm,1mm,0.2mm ,1mm, 1-14mm continuous
Filter Heat absorption ,Grey ,Red-Free ,Cobalt Blue
Illumination bulb 12V 50W halogen lamp
Power Input voltage 110V/220V
Frequency 50/60HZ
Power consuption 68VA
Weight and size Gross Weight 18kg
Dimension 690mm(L)× 440mm(W)× 420mm(H)


Accessories :

1.Camera adaptor

2.camera splitter

3.Professional digital single lens reflexs camera

4.Bolan slit lamp processing microsoft system

5.Apple PC computer(for option)

6. High-definition ink-jet printer(for option )


5 Magnifications Digital Data Portable Slit Lamp With Adaptor And Imaging Camera 0

5 Magnifications Digital Data Portable Slit Lamp With Adaptor And Imaging Camera 1

5 Magnifications Digital Data Portable Slit Lamp With Adaptor And Imaging Camera 2
