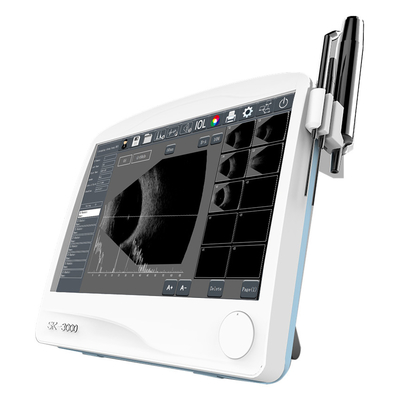

SK-3000ABP Ophthalmic Eye Ultrasound A B Scan Biometer Pachymeter 12.1 inch Touch Screen Display Sony Duplicator

Place of Origin CHINA
Certification CE,FDA
Model Number GD9908ABP
Minimum Order Quantity 1
Delivery Time 15DAYS
Payment Terms L/C, T/T
Supply Ability 100PCS/MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
A Scan 10Mhz B Scan 10MHz
Pachymeter 20MHz Computer Built-in System
Display 12.1 Inch Touch Screen Printer Sony Duplicator, Computer With Graphic Workstation
Leave a Message
Product Description

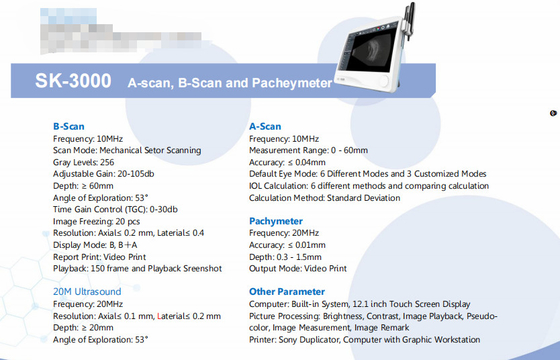

SK-3000ABP Ophthalmic Eye Ultrasound A B Scan Biometer Pachymeter 12.1 inch Touch Screen Display Sony Duplicator

A Scan 10MHz
B Scan 10MHz
P Scan 20MHz

Frequency: 10MHz
Accuracy: Axial Length Measurement≤0.05mm
Depth: ≥40mm
Propagation Velocity: 1641, 1532
Data Output: Cornea, Anterior Chamber, Lens,
Vitreous, Axial Length
IOL Calculation: 6 common methods, Srk2, Srk/t,
Binkhorst II, Hoffer Q, Hollady, Haigis
Default Eye Mode: Normal, Dense, Aphakic,
PMMA, Silicone, Acrylic, Cataractous and 2
Customized Modes
Measurement Method: Immersion or Contact
Measurement Mode
Frequency: 10MHz
Scan Mode: Mechanical Setor Scanning
Gray Levels: 256
Adjustable Gain: 20-105db
Depth: ≥ 60mm
Angle of Exploration: 53°
Time Gain Control (TGC): 0-30db
Image Freezing: 20 pcs
Resolution: Axial≤ 0.2 mm, Laterial≤ 0.4
Display Mode: B, B+A
Report Print: Video Print
Playback: 150 frame and Playback Sreenshot
Frequency: 20MHz
Accuracy: Corneal Measurement≤ 0.01mm
Depth: 0.15mm - 1.5mm
Propagation Velocity: 1640
Data Output: Corneal Thickness
Measurement Method: Contact Measurement Mode
Other Parameter
Gain: 99db
Touch Screen: 6.5 inch Color
Display Resolution: ≤ 0.1mm
Output Information: 10-group Data, Average & Standard
Deviation Calculation
Storage: 200 copies Exam Data
Print: Built-in Fast Thermal Printer
Other Parameter
Computer: Built-in System, 12.1 inch Touch Screen Display
Picture Processing: Brightness, Contrast, Image Playback, Pseudocolor,
Image Measurement, Image Remark
Printer: Sony Duplicator, Computer with Graphic Workstation
SK-3000ABP Ophthalmic Eye Ultrasound A B Scan Biometer Pachymeter  12.1 inch Touch Screen Display Sony Duplicator 0
