5VA Power Ophthalmic Slit Lamp 81mm Working Distance With 10X Eyepieces

Place of Origin China
Certification CE, FDA
Model Number GD9101B
Minimum Order Quantity 1pcs
Price Negotiable
Delivery Time 10-20 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 100pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Portable Ophthalmic Optical Equipment Microscope Type Converging
Diopter Adjustment -8D-+8D Objective Lens 10X
Slit Width 0-12mm Continuous Illumination Bulb White LED
Power 5VA Working Distance 81mm
High Light

hand held slit lamp


ophthalmology slit lamp

Leave a Message
Product Description

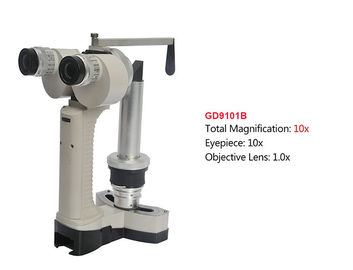

GD9101B Portable Ophthalmic Slit Lamp Hand Held Slit Lamp with 10X Eyepieces

1. with 10X,16X eyepieces

2. with Li-ion Battery, Battery Charger

3. With metal box
4. With focus stick, Forehead Bracket



Microscope TypeConverging
Objective Lens10x10x,16x10x,16x
Total Magnifications10x10x,16x10x,16x,25x
Working Distance81mm
Intraocular Distance45-78mm
Diopter Adjustment-8D~8D


Slit Width0-12mm continuous
Slit Height12mm1-12mm1-12mm
Slit AngleHorizontal ± 30 °
Light Spot Diameter12mm1-12mm
FiltersHeat Absorption, Yellow, Redfree (green), Cobalt Blue
Illumination BulbWhite LED
Brightness> 30000 Lux


Charging VoltageAC 100~240V, 50/60Hz
LED Working VoltageDC 3V, 350mAh
BatteryLi-ion Battery; 7.4V, 680mAh, Full Battery can supply 5-6 hours continuously

700g (including battery)


5VA Power Ophthalmic Slit Lamp 81mm Working Distance With 10X Eyepieces 0
5VA Power Ophthalmic Slit Lamp 81mm Working Distance With 10X Eyepieces 1
