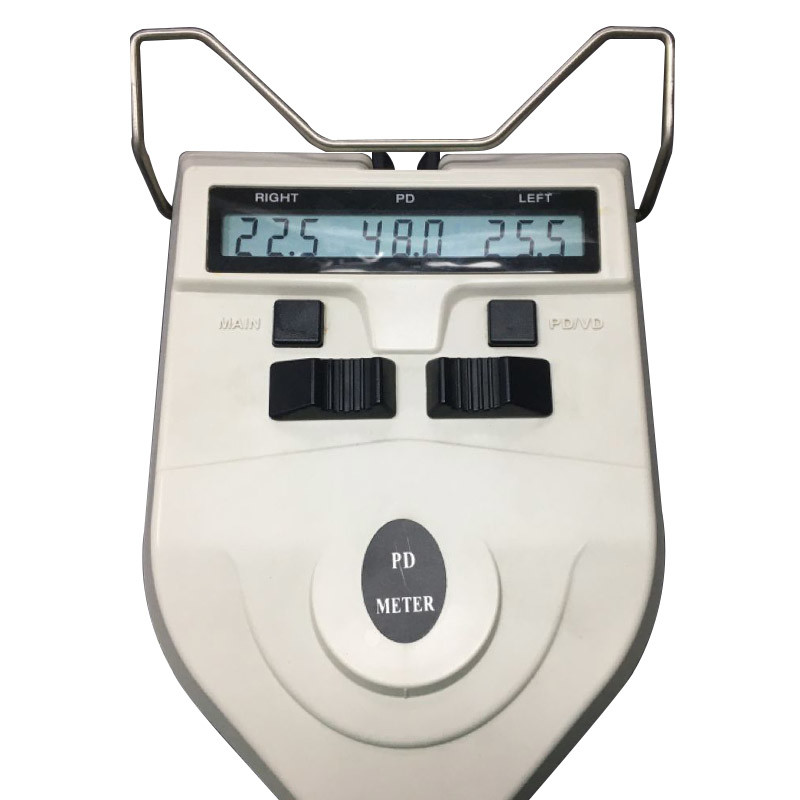

Binocular AA Battery Auto Shut Off Digital PD Meter For Pupil Distance

Basic Information
Place of Origin: China
Certification: CE
Model Number: GD8403TB
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: 32 x 22 x 16cm; 1.5kgs.
Delivery Time: 10-20 work days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 500pcs/month
Detail Information
PD Measurement: Binocular/Monocular VD Measuring: Available
Automatic Switch Off: Available Compensation Unit: Included
Accuracy: 0.5mm Steps Battery Type: AA Battery
High Light:

Auto Shut Off Digital PD Meter


AA Battery Digital PD Meter


Binocular Digital PD Meter

Product Description

VD/PD Auto Shut-off PD Meter Pupillometer Optical Digital PD Meter Pupilometer Interpupillary Distance Tester

1, It employs precise optical structure, the line of light is very clear and precise measurement.

The measurement results are displayed digitally,and the left eye and right eye measuring values are displayed separately.
2, Simple and rapid measuring operation, and free operation of the direct PD adjustment lever are possible.

Combining with the adjustable viewing distance selecting lever for measuring all kind of the viewing distances, the PD measurement is simple and precise.
3, When the measuring operation is finished, the auto poweroff and memory function,enable to save the power and not to lose the data.
4, It can also be used in monocular the left eye and right eye separately.

It is an ideal digital precision optical meter for measuring distance between human pupils in the process of optometry.

It is designed in a scientific and reasonable way, integrating technologies on optics and microelectronics. It has the most exactitude configuration, measuring more correctly.

It also has the focusing button for distance converting.

The pupil distance is measured by making the papillary light point and measuring light in direct line, in the way of monocular eye or binocular eyes.


Effective Range of Measurement: Binocular papillary distance 45 ~ 82 mm
Left or right papillary distance 22.5 ~ 41 mm
Indication Error ≤ 0.5 mm
Rounding Error ≤ 0.5 mm
Absolute value of the asymmetry error ≤0.5mm
Distance of Target 30 cm ~ ∞
Power Supply: DC 1.5 V; 1 x 5# AA Battery (Battery is not included.)
Time for Automatic Shut-off About one minute after stopping operation

Real Photos:


Binocular AA Battery Auto Shut Off Digital PD Meter For Pupil Distance 0

Binocular AA Battery Auto Shut Off Digital PD Meter For Pupil Distance 1

Binocular AA Battery Auto Shut Off Digital PD Meter For Pupil Distance 2



Binocular AA Battery Auto Shut Off Digital PD Meter For Pupil Distance 3


Product & Service


  • Ophthalmic Instruments: Auto Refractometer, Phoropter, Auto Projector, PD Meter, Trial Lens Set, LCD Vision Chart, Ophthalmic Unit, Ophthalmic Motorized Table, Ophthalmoscope, Retinoscope etc;
  • Lens Testing Device: Auto Lensmeter, UV Tester, Blue Blocking Lens Tester, Stress Tester etc;
  • Lens Lab Instruments: Auto Lens Edger, Hand Lens Edger, Groover, Lens Driller, Ultrasonic Cleaner, Frame Warmer, Pliers & Screwdrivers etc;
  • Accessories: Lens Blocking Pads, Interliner etc.

Trade Conditions:

  • Payment: TT, Western Union, L/C, Paypal;
  • Lead Time: 7 - 14 working days to finish order;
  • Warranty: 1 Year;
  • Standard: ISO, CE, FDA
  • After Sale Service: Lifelong.

About Us

Since from 2005, JingGong Optical started searching made in China optical instruments for optical wholesalers and chain stores, with many years’ experience and investment in this field, Now JingGong Optical is innovating, manufacturing & exporting a wide range of ophthalmic instruments, eyewear laboratory equipment, lab tools & accessories, if you are optical instruments wholesaler, optical shop, eye care hospital or lens laboratory, you can have best solutions from our instruments category.

In accordance with International & regional standards, JingGong Optical products are following ISO, CE & FDA instructions, also has warranty policy & maintenance service on each products, we are always working with customers to improve products and technology.


Our Vision: We are not going to save the world, we are not going to improve the eyesight of whole human being, but what we are concentrating on, is to provide our customers and end-users a precision, qualified, friendly-operated and lowest costed ophthalmology instruments and lens laboratory instruments.We are always hearing from our customers, to find every even small way to improve our products and service.


Guarantee:We absolutely understand you are worrying about the potential functional & quality problem of instruments you are buying from us, don’t worry, we carry out 100% QC before shipping, we also have guarantee for each product, buy from us means buy 100% satisfaction.


Staff:The employees who working for us, are with good background in optical industry, who was working in lens manufacturing, who was working in production line of eyewear, even has registered optometrist, our staff can think from different aspects instead of only one side.

Binocular AA Battery Auto Shut Off Digital PD Meter For Pupil Distance 4
