Black And White Optometry Phoropter Fully Sealed Vision Tester GD8704

Place of Origin China
Brand Name KESHILONG
Certification CE, FDA
Model Number GD8704
Minimum Order Quantity 1pcs
Price Negotiable
Delivery Time 10-20 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 300pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Black Or White For Option Quality Top-grade Quality
Sphere Powers +16.75D To-19.00D Cylinder Power Range 0 To-6.00D
Astigmatic Axis Scale 0 To 180° In 5° Steps Cross Cylinder ±0.25D
Rotary Prism 0 To 20D In 1D Step PD 50~78MM
High Light

digital phoropter

,

ophthalmic phoropter

Leave a Message
Product Description

Optometry Phoropter Fully Sealed Vision Tester View Tester Refractor Black and white for option GD8704

Specification
(A) Measuring range:
(1) SPH: 0.00D ~ -19.00D (-0.25D) steps
+ 0.25D~ +16.75 D(+0.25D) steps
(2)CYL: 0.00D ~ -6.00D (-0.25D) steps (with additional lens of -2.00D, the CYL power can be up to -8.00D
(3)AXIS: 0º - 180º
(4)P.D: 50mm - 78mm( in 1mm steps)



(B)Auxiliary Lenses:
(1) Occluder
(2) P.D Check
(3) Pinhole Plate(1mm)
(4) Polarizing: right eye 135º left Eye 45º
(5) Red/Green :Filters( right eye : red left eye: green)
(6) Dissolution prism: Right eye 6Δ B/U Left eye 10Δ B/I
(7) Maddox Rod: Right eye red horizontal/ vertical left eye white vertical/horizontal
(8) Fixed Cross Cylinder: ±0.50D
(9) Retinoscope: +1.50D



(C) Rotary Cross Cylinder lens: ±0.25D
(D) Rotary Prism:0Δ ~ 20Δ (1Δ steps)



(E) Dimension & Weight:
(1) Main body: 330(W) × 400(D) × 100(H) mm
(2) Carton:430(W) × 530(D) × 200(H) mm
(3) N.W: 5.1kg
(4) G.W: 7.5kg

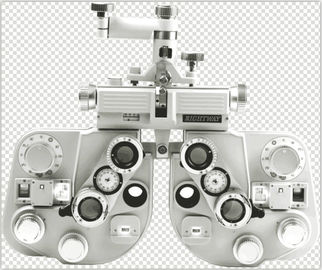

Black And White Optometry Phoropter Fully Sealed Vision Tester GD8704 0

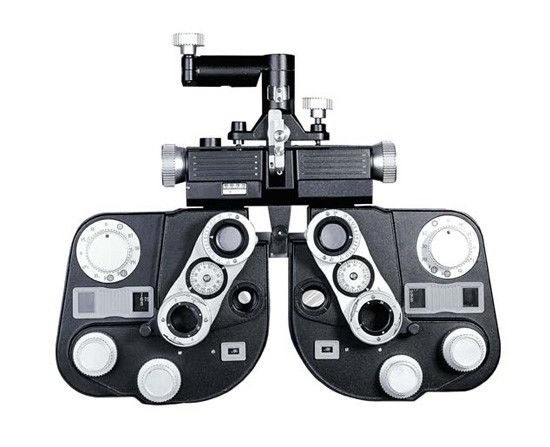

Black And White Optometry Phoropter Fully Sealed Vision Tester GD8704 1
