Black And White Optometry Phoropter Fully Sealed Vision Tester GD8704

Place of Origin China
Certification CE, FDA
Model Number GD8704
Minimum Order Quantity 1pcs
Price Negotiable
Delivery Time 10-20 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 300pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Black Or White For Option Quality Top-grade Quality
Sphere Powers +16.75D To-19.00D Cylinder Power Range 0 To-6.00D
Astigmatic Axis Scale 0 To 180° In 5° Steps Cross Cylinder ±0.25D
Rotary Prism 0 To 20D In 1D Step PD 50~78MM
High Light

digital phoropter


ophthalmic phoropter

Leave a Message
Product Description

Optometry Phoropter Fully Sealed Vision Tester View Tester Refractor Black and white for option GD8704

(A) Measuring range:
(1) SPH: 0.00D ~ -19.00D (-0.25D) steps
+ 0.25D~ +16.75 D(+0.25D) steps
(2)CYL: 0.00D ~ -6.00D (-0.25D) steps (with additional lens of -2.00D, the CYL power can be up to -8.00D
(3)AXIS: 0º - 180º
(4)P.D: 50mm - 78mm( in 1mm steps)


(B)Auxiliary Lenses:
(1) Occluder
(2) P.D Check
(3) Pinhole Plate(1mm)
(4) Polarizing: right eye 135º left Eye 45º
(5) Red/Green :Filters( right eye : red left eye: green)
(6) Dissolution prism: Right eye 6Δ B/U Left eye 10Δ B/I
(7) Maddox Rod: Right eye red horizontal/ vertical left eye white vertical/horizontal
(8) Fixed Cross Cylinder: ±0.50D
(9) Retinoscope: +1.50D


(C) Rotary Cross Cylinder lens: ±0.25D
(D) Rotary Prism:0Δ ~ 20Δ (1Δ steps)


(E) Dimension & Weight:
(1) Main body: 330(W) × 400(D) × 100(H) mm
(2) Carton:430(W) × 530(D) × 200(H) mm
(3) N.W: 5.1kg
(4) G.W: 7.5kg

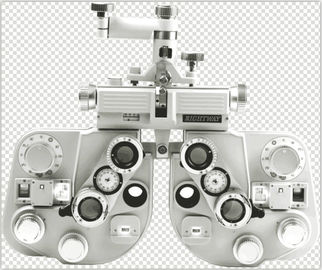

Black And White Optometry Phoropter Fully Sealed Vision Tester GD8704 0

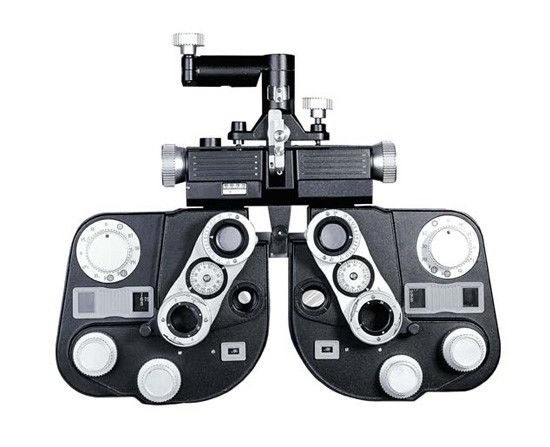

Black And White Optometry Phoropter Fully Sealed Vision Tester GD8704 1

Product & Service


  • Ophthalmic Instruments: Auto Refractometer, Phoropter, Auto Projector, PD Meter, Trial Lens Set, LCD Vision Chart, Ophthalmic Unit, Ophthalmic Motorized Table, Ophthalmoscope, Retinoscope etc;
  • Lens Testing Device: Auto Lensmeter, UV Tester, Blue Blocking Lens Tester, Stress Tester etc;
  • Lens Lab Instruments: Auto Lens Edger, Hand Lens Edger, Groover, Lens Driller, Ultrasonic Cleaner, Frame Warmer, Pliers & Screwdrivers etc;
  • Accessories: Lens Blocking Pads, Interliner etc.

Trade Conditions:

  • Payment: TT, Western Union, L/C, Paypal;
  • Lead Time: 7 - 14 working days to finish order;
  • Warranty: 1 Year;
  • Standard: ISO, CE, FDA
  • After Sale Service: Lifelong.

About Us

Since from 2005, JingGong Optical started searching made in China optical instruments for optical wholesalers and chain stores, with many years’ experience and investment in this field, Now JingGong Optical is innovating, manufacturing & exporting a wide range of ophthalmic instruments, eyewear laboratory equipment, lab tools & accessories, if you are optical instruments wholesaler, optical shop, eye care hospital or lens laboratory, you can have best solutions from our instruments category.

In accordance with International & regional standards, JingGong Optical products are following ISO, CE & FDA instructions, also has warranty policy & maintenance service on each products, we are always working with customers to improve products and technology.


Our Vision: We are not going to save the world, we are not going to improve the eyesight of whole human being, but what we are concentrating on, is to provide our customers and end-users a precision, qualified, friendly-operated and lowest costed ophthalmology instruments and lens laboratory instruments.We are always hearing from our customers, to find every even small way to improve our products and service.


Guarantee:We absolutely understand you are worrying about the potential functional & quality problem of instruments you are buying from us, don’t worry, we carry out 100% QC before shipping, we also have guarantee for each product, buy from us means buy 100% satisfaction.


Staff:The employees who working for us, are with good background in optical industry, who was working in lens manufacturing, who was working in production line of eyewear, even has registered optometrist, our staff can think from different aspects instead of only one side.

Black And White Optometry Phoropter Fully Sealed Vision Tester GD8704 2
