|Microscope Type:||Converging Stereoscope||Objective Magnification:||Two Steps Drum Magnifications|
|Eye Piece:||10X||Magnifications (Field Of View):||10 X (Φ18mm) 16 X (Φ14.5mm)|
|Pupil Distance:||55mm ~ 82mm||Diopter Adjustment:||±6D|
|Slit Width:||0mm~14mm Adjustable (slit Is Round When The Slit Width Is 14mm)||Slit Height:||1mm~14mm Adjustable|

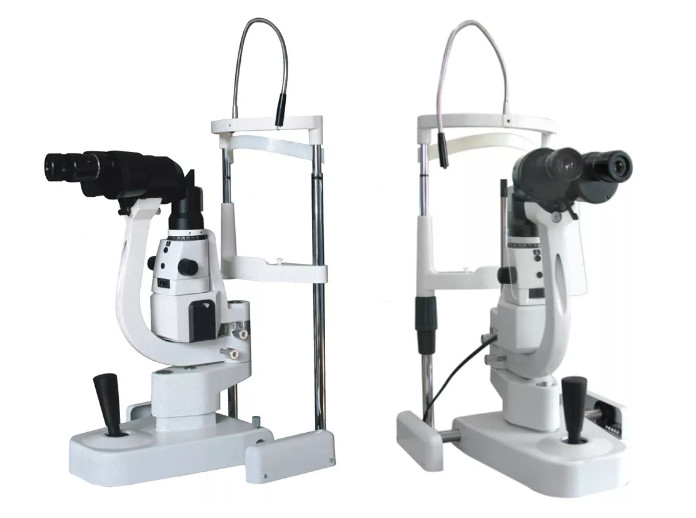

66 Vision Slit Lamp Galileo magnification changer with converging Pupilary 55~82mm Halogen Bulb Two Magnifications
1. Advanced converging stereoscopic microscope.
2. 14mm Aperture provides broader and clearer field of view.
3. Compact and flexible structure ensures the convenient use.
|Microscope Type||Galileo magnification changer with converging|
|Magnification Change||Switch zoom|
(Field of View)
|10x( φ22.5 mm ), 16x( φ14 mm )|
|Pupilary Adjustment||55 mm~82 mm|
|Slit Width||continuously variable from 0 ~14 mm adjustable(at 14 mm, slit becomes a circle )|
|Slit Height||continuously variable from 1 mm~14 mm|
|Slit Angle||0°~180° ( continuously adjustable both vertical and horizontal)|
|Aperture Diameter||φ14mm, φ9mm, φ5.5mm, φ0.3mm|
|Lamp||6V/20W Halogen bulb|
|Maximum Illuminance||≥150,000 Lx|
|Filter||Thermal safety, red-free, cobalt blue|
|Input Voltage||AC 220V /110V ±10%|
|Electrical Safety Standard||IEC 60601-1, Class I, Type B|
|Dimension & Weight & Accessories|
|Packing Volume||720 mm x 495 mm x 480 mm|
|Total Weight||23 Kg|
|Optional Accessories||Applanation tonometer, trihedron lens, gonioscope, funduscope, aspheric lens|
