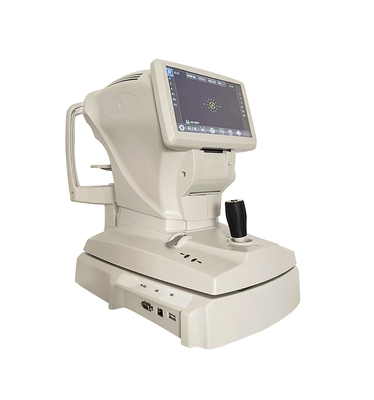

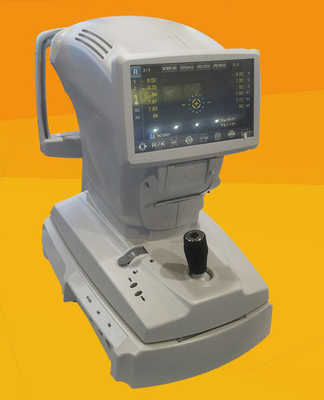

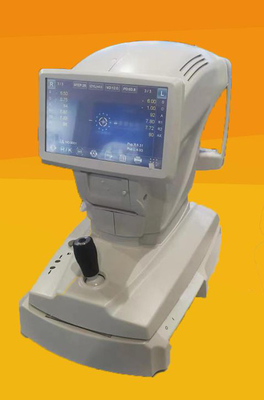

RMK-8100 Auto Refractometer with keratometer 7 inch TFT Touch Screen angel adjustable Measure Minimum 2.0mm pupil
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Moitor | 7'' TFT Screen | Printer | 57mm Thermal Printer |
|---|---|---|---|
| Chart | Auto Fog | NW | 24kgs |
| GW | 27kgs | Measuring Time | 0.5s |
| Minimum Pupil | 2.0mm | Pupil Distance | 10~85mm |
Product Description
RMK-8100 Auto Refractometer with keratometer 7 inch TFT Touch Screen angel adjustable Measure Minimum 2.0mm pupil
GR8925: without keratometer
GRK8925: with keratometer
Feature:
1. The auto refractometers have the function of Quick measurement for diopter of 2mm MIN.pupil size, Corneal Diameter
2. Measured MOR quickly because the Technology of Bile-in Micro process and quick graphic process.
3. Quick measurement for diopter of MIN.pupil size.
4. New design of colorful sreen (5.7" TFT LCD).
5. Auto fog chart.
6. Pupil distance auto measured available
7. Choice for vertex distance.
8. Ability of auto-measurement after align and focus.
Specification:
| Measuring Range | Spherical | -20~+20D (VD=12mm, 0.12 or 0.25D Steps) |
| Cylinder | -8D~+8D (0.12D steps) | |
| Axis | 0-180D (1D steps) | |
| Pupil Distance | 45-85mm (1mm steps) | |
| Vertex Distance | 0,12,13.75,15mm | |
| Min. Pupil Distance | 10mm | |
| Chart | Auto Fog | |
| Display | 7’’ TFT LCD | |
| 57 Thermal Printer | ||
| Power supply | 100~~120V/220V~240V, 50/60Hz | |
Measurement Performance Parameters
5.1.1 Corneal Vertical Distance(VD): 0.00mm,12mm,13.75mm,15mm
5.1.2 SPH: -20.00 m-1~ +20.00 m-1( VD=12mm,0.01 m-1,0.06 m-1,0.12 m-1,
0.25 m-1 unit ), deep myopia measurement available
5.1.3 CYL: 0.00 m-1 ~ ±6.00 m-1 (0.25 m-1 unit)
5.1.4 Cylinder Form: －,＋,±
5.1.5 Axis(AX): 1°~ 180° (1° unit)
5.1.6 Pupil Distance(PD): 10mm ~ 85mm(0.1mm unit)
5.1.7 Radius of Corneal Curvature: 5.0 ~ 10.0mm (0.01mm unit)
5.1.8 Corneal Power: 33.00 m-1~ 67.00 m-1 (in case that the corneal equivalent
refractive power is 1.3375)
5.1.9 Corneal Astigmatism: 0.00 m-1 ~ 15.00 m-1 (0.06 m-1/0.12 m-1/0.25 m-1 unit)
5.2 Other Performance Parameters
5.2.1 7″TFT touch screen (angle adjustable)
5.2.2 Printer: 57mm thermal printer
5.2.3 Measuring Light Energy: ＜30uW (prevent injury to eyes during measuring)
5.2.4 Measuring Time: ＜0.5s
5.2.5 Minimum 2.0mm pupil can be measured. The application of cloud and mist
chart technology allows the patients’ eyes to look at the internal targets in a
natural and comfortable situation and make the measurement more accurate
5.2.6 Auto tracking, auto focusing and auto measuring of end of measurement (partial
model)
5.2.7 Electrical Power: AC100 ~ 240V, 50/60Hz
5.2.8 Consumption: 60AV
5.2.9 N.W.: 24kgs
5.2.10 G.W.: 27kgs
5.2.11 Dimensions: L528mm×W260mm×H448mm
5.2.12 The refractometer service life for 10 years, to ensure accurate measurement,
please make the metrological verification every y
