5.6″ LCD TFT Screen Auto Refractometer 12mm Vertex Distance

Basic Information
Place of Origin: CHINA
Brand Name: XINYUAN
Certification: CE, FDA
Model Number: GR8905
Minimum Order Quantity: 1
Payment Terms: L/C, T/T, Western Union
Detail Information
Moitor: 5.6" TFT Screen Chart: Auto Fog
Printer: Auto-cut Data Paper NW: 22kgs
GW: 26.5kgs Measuring Time: 0.5s
Minimum Pupil: 2.0mm Pupil Distance: 45~88mm
High Light:

TFT Screen Auto Refractometer


5.6″ LCD Auto Refractometer


12mm Vertex Distance Auto Refractometer

Product Description

FKR-900 Auto Refractometer with Keratometer 6.5" color and touch screen can measure the eye did cataract surical before


FA-6100(GR8905): wiThout keratometer

FA-6100K(GRK8905): with keratometer



Display screen: The CRT Monitor make the measurement results and setting image display on an easy-to-view screen.
AUTO PD measurement: The PD will be automatically calculated after measurement.
Easy to operate, one-hand control: All operations, including UPDown, RightLeft, ForwardBackward and Start can be easily controlled with one hand through the control stick.
Faster and more accurate measurement.
More broad measurement range of Min. pupil size toφ2.0mm.
Auto manual focus function.
Convenient user menu setting.
Keratometry and refractometry mode select.



Vertex distance 0mm, 12mm,13.75mm
Spherical -20 – +20D (VD=12) 0.12/0.25m-1 Step
Cylinder -8 – +8m-1 0.12/0.25m-1 step
Axis 0~180° 1°Step
Cylinder form -, +, +
Pupil distance 45-88mm, 1mm step
Min. pupil size 2.0mm
Radius of curvature 5.0-10mm (increment:0.01mm)

Corneal Power


33.75-67.50D (when corner equivalent refractive index is 1.337)
Increment selectable from 0.12,0.25m-1
Corneal astigmatism 0.00-8.00m-1 (Increment selectable from 0.12,0.25m-1 )
Axis 1~180°(increment:1°)
Corneal diameter 2.0 -14mm (increment:0.1mm)
Chart Auto fog
Memory of data 10 meature value for each right and left eye
Display 5.6″LCD/TFT
Print Thermal printer
Power supply 100 – 240V 50/60HZ
Dimension FA-6100B:490mm•280mm•470mm,FA-6100:469mm•308mm•522mm FA-6000A&FA-6100A:280mm*492mm•462mm
Weight 15.5kg

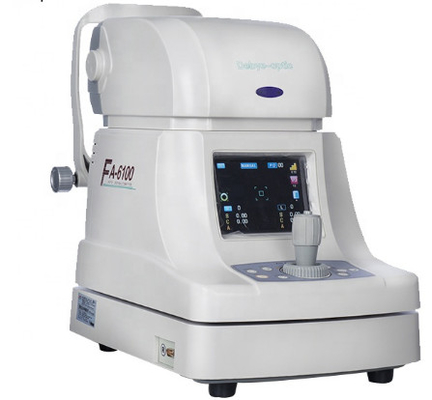

5.6″ LCD TFT Screen Auto Refractometer 12mm Vertex Distance 0

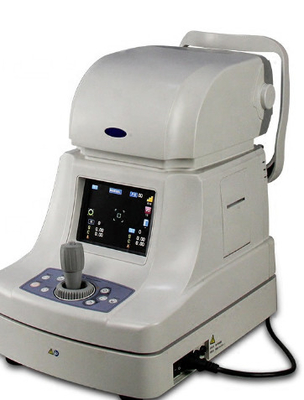

5.6″ LCD TFT Screen Auto Refractometer 12mm Vertex Distance 1

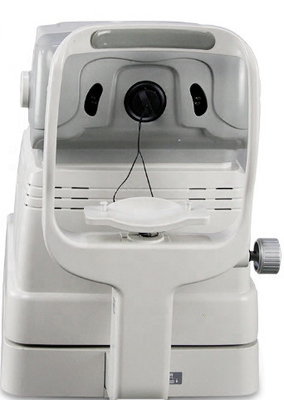

5.6″ LCD TFT Screen Auto Refractometer 12mm Vertex Distance 2

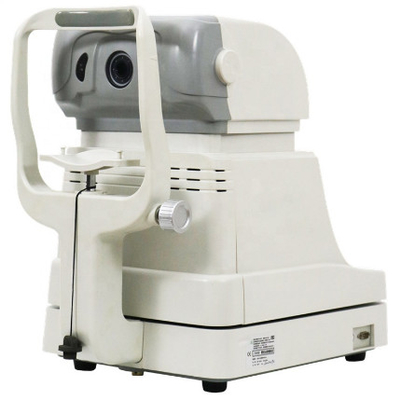

5.6″ LCD TFT Screen Auto Refractometer 12mm Vertex Distance 3




Product & Service


  • Ophthalmic Instruments: Auto Refractometer, Phoropter, Auto Projector, PD Meter, Trial Lens Set, LCD Vision Chart, Ophthalmic Unit, Ophthalmic Motorized Table, Ophthalmoscope, Retinoscope etc;
  • Lens Testing Device: Auto Lensmeter, UV Tester, Blue Blocking Lens Tester, Stress Tester etc;
  • Lens Lab Instruments: Auto Lens Edger, Hand Lens Edger, Groover, Lens Driller, Ultrasonic Cleaner, Frame Warmer, Pliers & Screwdrivers etc;
  • Accessories: Lens Blocking Pads, Interliner etc.

Trade Conditions:

  • Payment: TT, Western Union, L/C, Paypal;
  • Lead Time: 7 - 14 working days to finish order;
  • Warranty: 1 Year;
  • Standard: ISO, CE, FDA
  • After Sale Service: Lifelong.

About Us

Since from 2005, JingGong Optical started searching made in China optical instruments for optical wholesalers and chain stores, with many years’ experience and investment in this field, Now JingGong Optical is innovating, manufacturing & exporting a wide range of ophthalmic instruments, eyewear laboratory equipment, lab tools & accessories, if you are optical instruments wholesaler, optical shop, eye care hospital or lens laboratory, you can have best solutions from our instruments category.

In accordance with International & regional standards, JingGong Optical products are following ISO, CE & FDA instructions, also has warranty policy & maintenance service on each products, we are always working with customers to improve products and technology.


Our Vision: We are not going to save the world, we are not going to improve the eyesight of whole human being, but what we are concentrating on, is to provide our customers and end-users a precision, qualified, friendly-operated and lowest costed ophthalmology instruments and lens laboratory instruments.We are always hearing from our customers, to find every even small way to improve our products and service.


Guarantee:We absolutely understand you are worrying about the potential functional & quality problem of instruments you are buying from us, don’t worry, we carry out 100% QC before shipping, we also have guarantee for each product, buy from us means buy 100% satisfaction.


Staff:The employees who working for us, are with good background in optical industry, who was working in lens manufacturing, who was working in production line of eyewear, even has registered optometrist, our staff can think from different aspects instead of only one side.

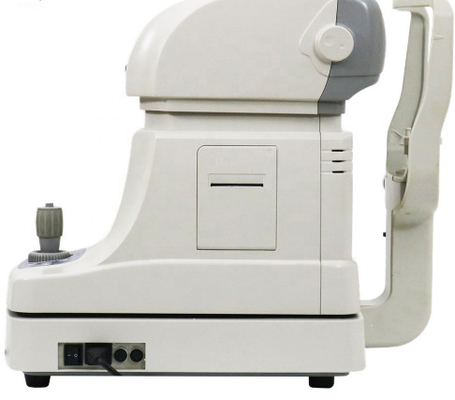

5.6″ LCD TFT Screen Auto Refractometer 12mm Vertex Distance 4
