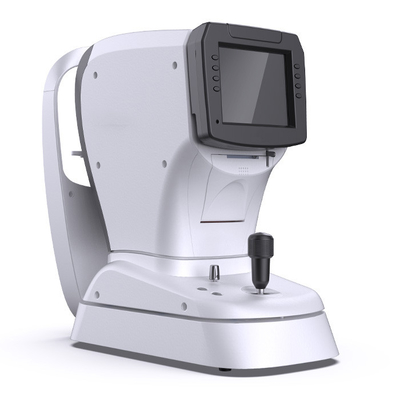

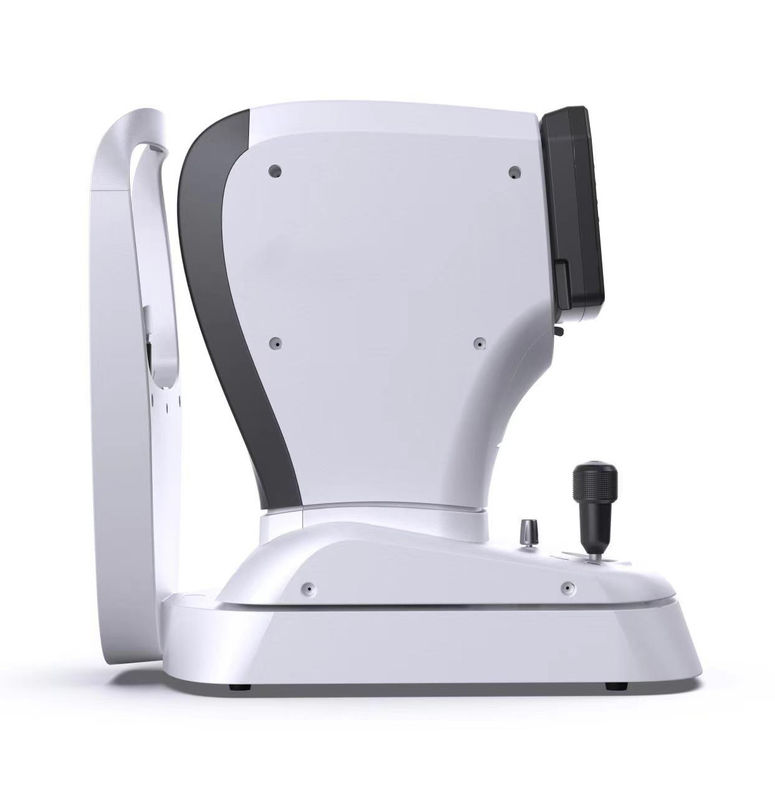

2.0mm Pupil TFT LCD Screen Auto Optical Refractometer FKR-900

Place of Origin CHINA
Certification CE, FDA
Model Number GRK8921
Minimum Order Quantity 1
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Moitor 6.5" TFT LCD Touch Screen Chart Auto Fog
Printer Auto-cut Data Paper NW 22kgs
GW 26.5kgs Measuring Time 0.5s
Minimum Pupil 2.0mm Pupil Distance 10~85mm
High Light

LCD Screen Auto Optical Refractometer


TFT Screen Auto Optical Refractometer


2.0mm Pupil Auto Optical Refractometer

Leave a Message
Product Description

FKR-900 Auto Refractometer with Keratometer 6.5" color and touch screen can measure the eye did cataract surical before



Main Feature :
1. use rotating prism principle , very high accuracy .

2. 6.5" color and touch screen
3. auto measure function
4. Motorized vertical moving auto tracking

5. Motorized joystick automatic

6. IOL function , can measure the eye did cataract surgical before,


Configuration Specification
Diopter measurment Vertex distance (VD) 0mm,12.0mm,13.75mm,15.00mm
Spherical refractive power -25.00D~+25.00D
Cylindrical refractive power -10D~+10D
Direction of astigmatic axis 0°~180°
PD measurement 10mm~85mm
Corneal measurement Minimum pupil diameter Φ2.0mm
Corneal curvature radius 5mm~10mm
Direction of corneal astigmatic axis 0°~180°
Cornea diameter 2.0mm~12.0mm
Product specifications Monitor 6.5 inch Touch LCD monitor
printer Auto-Cut Data Paper
Saving mode 1/5/10/20/40 minutes automatic screensaver
Power supply AC220V; 50HZ 75VA




2.0mm Pupil TFT LCD Screen Auto Optical Refractometer FKR-900 0 2.0mm Pupil TFT LCD Screen Auto Optical Refractometer FKR-900 1 2.0mm Pupil TFT LCD Screen Auto Optical Refractometer FKR-900 2


 2.0mm Pupil TFT LCD Screen Auto Optical Refractometer FKR-900 3 2.0mm Pupil TFT LCD Screen Auto Optical Refractometer FKR-900 4
