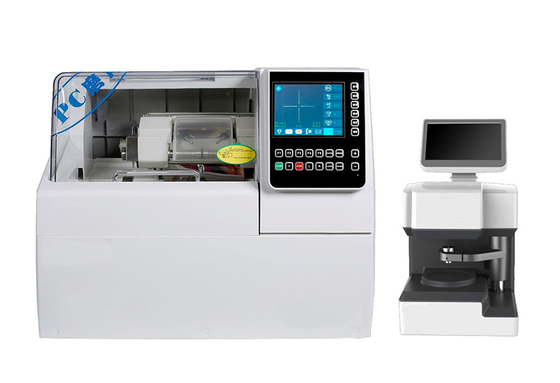

400VA Patternless Lens Edger Optical Auto Lens Edging Machine

Place of Origin China
Brand Name KESHILONG
Certification CE
Model Number GD3209
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details 7.5x63.5x54cm, 45kgs.
Delivery Time 10-20 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 150pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lens Diameter 22~100mm Wheel Diameter 100mm
Wheel Speed 16.7m/s Power 400VA
Accessories Water Pump&Tube&Tank Lens CR39, Glass, PC Lenses
High Light

400VA Patternless Lens Edger

,

Dia 22mm Patternless Lens Edger

,

500W Auto Lens Edging Machine

Leave a Message
Product Description

SJG-800 Patternless Auto Lens Edger For CR39 Glass Lenses with Scanner

Feature:

The main body of ALE-1000
  • 1. High-resolution 640*480,true color 5.7 inch LCD,display 1:1 actual size of lens graphics,icons,user-friendly operator interface.
  • 2. Many varieties of lens processing program,including the CR-39 resin piece,high flap lens,superhard diaphragm,glass,PC lens and Trivex lenses,which can fully meet the needs of the industry.
  • 3. Smooth shape ergonomic design,main engine,scanners split type configuration.
  • 4. It can be corrected scanning data,including axis and the distance between nose and eye.
  • 5. It has two modes of operation with the optical center/geometric center.
  • 6. It has 100mm diameter grinding wheel,can be processed high curved lenses.
  • 7. It has bevel polishing function,significant legislation glasses distinguished.8.Inheritance the tradition of LE series lens edger security,stablity,strong,durable.

Diagram direction:


(1) outer cover (voice-proof)
(2) water-proof inner cover
(3) head pressure adjusting knob
(4) the head
(5) the sensor of head base(cursor)
(6) lens chuck
(7) power switch
(8) wheels
(9) horizontal adjustment foot
(10) operation panel

Specifications



Direction:
F1: lens choice(PC,resin lens,HI Index,HC superhard coating,glass lens,Trivex)
F2: choice for bevel and flat shape
F3: chuck pressure choice 1/2/3
F4: polishing choice
F5: Boxing system and PD system choice
DATA: adjustment to the scanning data
MENU: menu
M1: ID works number(not available yet)
M2: X(horizontal excursion)
M3: Y(vertical excursion)
M4: θ(turning angle)
M5: DBL(distance of nose bridge)
M6: SIZE choice----default
+: increase
-: decrease
START: start
V: rebuilding



Specification:

  • Out size:650×550×480mm
  • Weight:60Kg
  • Hz:50Hz
  • Sounds:≤80DB
  • Voltage:220V±10%
  • Power:≤500W
  • Power of main motor:380W
  • Working environment:5℃~40℃
  • 400VA Patternless Lens Edger Optical Auto Lens Edging Machine 0

The size of Diamond wheel:

(The diameter and width of Grinding wheel)mm

Glass Wheel :100x14

V Groove Wheel:100x23 Bevel Polishing Wheel: 100x19

Available lens range: 22mm~80mm
The processing type: pointy edges, platband , flat and bevel polishing
The lens material: CR, Glass, PC
Product size: 510Lx490Wx400H (mm)
Package size: 770Lx710Wx630H (mm)
Weight : 44KG
Voltage: Voltage:220V±10% frequency:50Hz
Power: 500W



Details:

The main body of ALE-1000:

  • 1.High-resolution 640*480,true color 5.7 inch LCD,display 1:1 actual size of lens graphics,icons,user-friendly operator interface.
  • 2.Smooth shape ergonomic design,main engine,scanners split type configuration.
  • 3.Many varieties of lens processing program,including the CR-39 resin piece,high flap lens,superhard diaphragm,glass,PC lens and Trivex lenses,which can fully meet the needs of the industry.
  • 4.It has two modes of operation with the optical center/geometric center.
  • 5.It can be corrected scanning data,including axis and the distance between nose and eye.
  • 6.It has 100mm diameter grinding wheel,can be processed high curved lenses.
  • 7.It has bevel polishing function,significant legislation glasses distinguished.
  • 8.Inheritance the tradition of LE series lens edger security,stablity,strong,durable.

ALE-1000 Patternless Auto Lens Edger

Direction:
1-rough grinding wheel: used for CR or PC rough grinding
2-bevel polishing wheel: used for CR or PC bevel polishing
3-flat polishing wheel:used for CR or PC flat polishing
4-glass rough grinding wheel: used for glass rough grinding

5-bevel fine grinding wheel: used for bevel fine grinding
6-flat fine grinding wheel: used for flat fine grinding

ALE-1000 Patternless Auto Lens Edger



Diagram direction:
(1) outer cover (voice-proof)
(2) water-proof inner cover
(3) head pressure adjusting knob
(4) the head
(5) the sensor of head base(cursor)
(6) lens chuck
(7) power switch
(8) wheels
(9) horizontal adjustment foot
(10) operation panel

ALE-1000 Patternless Auto Lens Edger

Direction:
F1:lens choice(PC,resin lens,HI Index,HC superhard coating,glass lens,Trivex)
F2:choice for bevel and flat shape
F3:chuck pressure choice 1/2/3
F4:polishing choice
F5:Boxing system and PD system choice
DATA:adjustment to the scanning data
MENU:menu
M1:ID works number(not available yet)
M2:X(horizontal excursion)
M3:Y(vertical excursion)
M4:θ(turning angle)
M5:DBL(distance of nose bridge)
M6:SIZE choice----default
+:increase
-:decrease
START:start
V:rebuilding

  • Out size:650×550×480mm
  • Weight:60Kg
  • Hz:50Hz
  • Sounds:≤80DB
  • Voltage:220V±10%
  • Power:≤500W
  • Power of main motor:380W
  • Working environment:5℃~40℃

Packing parts:

No. name quantity
1 Cross screwdriver 1
2 Spanner 1
3 V board 1
4 Cup 4
5 Rubber chuck 1
6 Fuse 2
7 Maintenance card 1
8 Certificate of
quality
1
9 Operation manual 1
10 Desiccant 2
11 Power wire 1

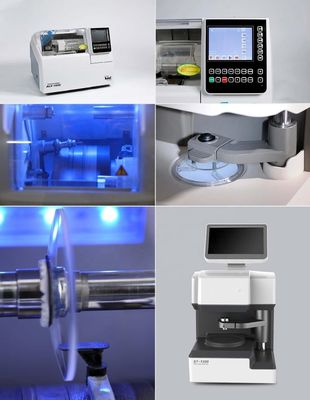

Pictures :

ALE-1000 Patternless Auto Lens Edger
