AC110V Spectacle Lens Cutting Machine Lens Cutting Machine 120W

Place of Origin CHINA
Brand Name KESHILONG
Certification CE
Model Number GD3207
Minimum Order Quantity 8 PCS
Packaging Details Foam Case, Export Cardboard Cartons
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 PCS Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220V/50Hz Or 110V/60Hz Product Power 120WW
Packing Size 280*235* 270mm Net Weight 4.35kgs
Gross Weight 4.85kg Can Only Cut Index 1.499, 1.56, 1.61
Highlight

AC110V Spectacle Lens Cutting Machine

,

Lens Cutting Machine 120W

,

Waterless Spectacle Lens Cutting Machine

Leave a Message
Product Description

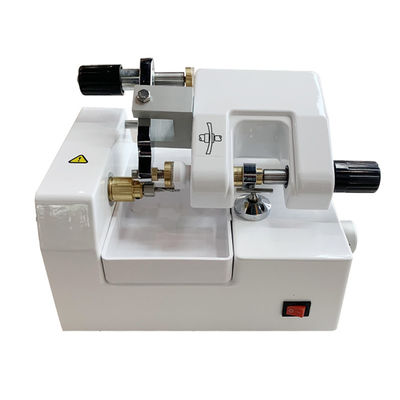

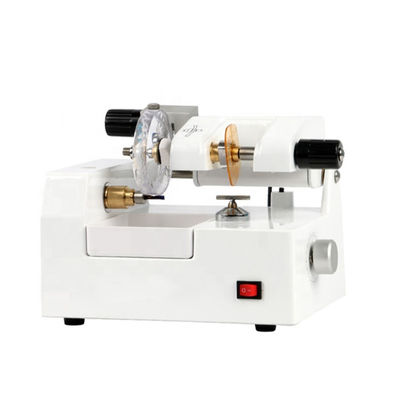

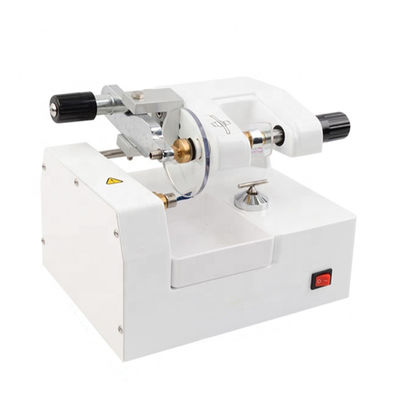

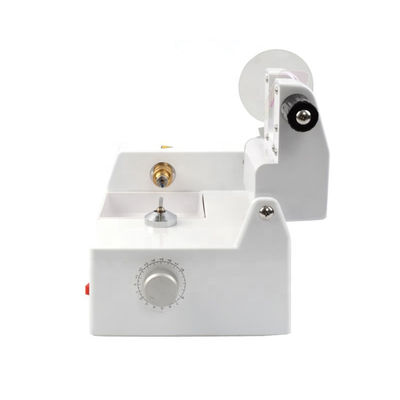

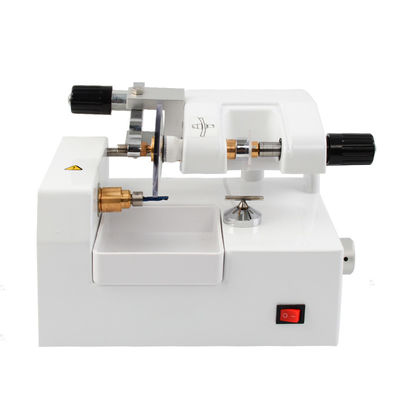

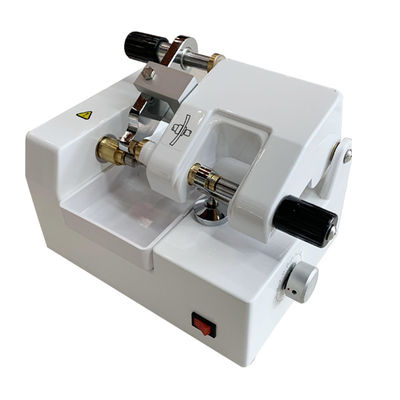

Spectacle Lens Cutting Machine CP-4A Lens Cutting Machine Waterless Cutting Imported Milling Cutter High Speed 70W



Features:


Model CP-4A Optical Lens Cutter
Voltage AC110V/220V
Power 120W
Cutting effect Plat side
Adjusting Size Range -8 ~ +8 (-8 means: the same size as pattern, 0 means 0.5 mm bigger than the pattern; +8 means 1.0 mm bigger than the pattern).
Cutting Speed 30s per lens
Application Can be used to cut resin lens(CR-39) with abbe below 1.61
Weight 5 kg



Specifications:This product is equivalent to the rough grinding function of the edging machine. The cutting speed is fast, and the cut edge is flat. Manual chamfering is required. It can only process resin lenses below 1.61.
Product advantages
1. Imported material milling cutter has fast cutting speed
2. The size of the adjustment knob is adjustable and easy to operate
3. Synchronous and precise cutting of template lens
4. The template size has been set at the factory without adjustment

Precautions
1. Can only cut resin sheets below 1.61
2. The edge of the template must be flat and light
3. When operating, turn on the power switch first, and then gently lower the head to prevent the lens from being broken
4. It is recommended that the slicer be operated in a box, so as to not only insulate sound, but also reduce dust pollution
5. This product has a rough grinding function equivalent to an automatic edging machine

Product acessories
3 kinds of suction cup bases and suction cups *1 each (including the machine base *1)
Rubber chuck*2
8/10 open-end wrench*1
Brush *1
Long screw*1
Allen wrench*1
