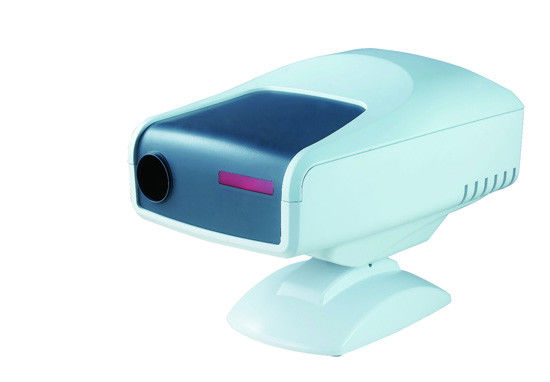

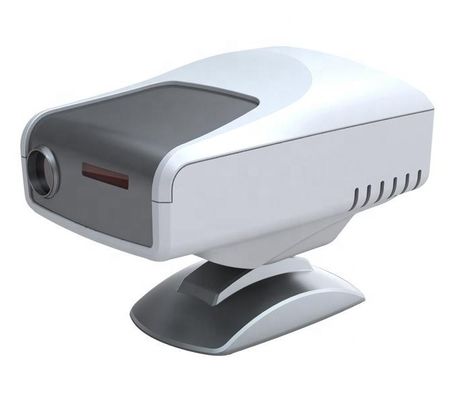

1.5m Distance Halogen Lamp Optical Chart Projector Remote Control

Basic Information
Place of Origin: China
Certification: CE
Model Number: GD8507 series
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 49*50*36cm, 7.5kgs.
Delivery Time: 10-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs/month
Detail Information
Projection Distance: 2~7m Number Of Charts: 50 Charts And 38 Masks
Proection Magnification: 30X(5M) Lamp: LED Lamp
Warranty: One Year Power: AC220-240V 50/60Hz, 50VA
GD8507C(ACP-1500A): C Type GD8507E(ACP-1500B): E Type
GD8507KGD8507K(ACP-1500C): K Type
High Light:

Halogen Lamp Optical Chart Projector


1.5m Distance Optical Chart Projector


80W Remote Optical Chart Projector

Product Description

Auto Chart Projector 30 different pattern 1.5m~7m projection disctance halogen lamp



1. 30 different charts and 35 masks;
2. 2 sets programs, each program contains upto 30 steps;
3. Remote control;
4. Both floor stand and wall stand are available.




Projection distance 1.5m~7m
Projection magnification 30*(at 5m)
Projection size 330mmW*270mmH (at 5m)
Chart 30 different pattern
Speed of chart conversion 0.01~0.02S
Mask 1 open, 5 horizontal lines, 8 vertical lines, 21 single letters, 1 red/green
Program 2 sets programs, each program contains up to 30 steps
Lamp Halogen lamp: 12V, 50W
Power Saving function Will automatically standby in 10 min
Power source AC220V, 50 Hz or 110V, 60 Hz
Power consumption 80W
Dimensions 300mm(L)*230mm(W)*240mm(H)
Net weight 7.2Kg
Accessories Remote control, Polarized metal screen, halogen lamp, Polarized glasses, fuses (2), batteries (2)
Optional accessories Floor stand, wall stand


1.5m Distance Halogen Lamp Optical Chart Projector Remote Control 0

1.5m Distance Halogen Lamp Optical Chart Projector Remote Control 1

1.5m Distance Halogen Lamp Optical Chart Projector Remote Control 2
