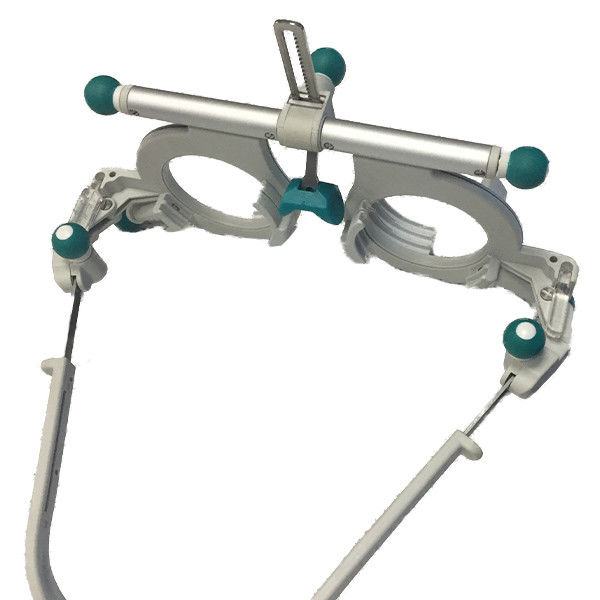

Ophthalmic Optical Titanium Universal Trial Frame Adjustable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|PD Range||48~80mm(total Both Eyes)||Temple Length||98~135mm|
|Nose Bridge Height||0~14mm||Nose Angle||0°~30°|
|Axis Calibration On Each Lens||Left-120° To 0° To 135°, Right-45° To 180° To 60°||Lens Rotation||Full 360°|
Titanium Universal Trial Frame,
Ophthalmic Universal Trial Frame,
Adjustable Optical Trial Frame
Trial frame Optical trila lens frame Fully adjustable Universal type GD1100
1.Pupil distance adjustment range: binocular pupil distance range: 48 - 80 mm; left and right pupil distance: 24 - 40 mm each; the
minimum scale value: 1 mm.
2.Axis scale:left scale: 130 °~ 0 °~ 120 °; right scale: 50 °~ 180 °~ 60 °.The axis scale increases anticlockwise along the axis
of the frame, and the marking interval is 5°.
3.Effective internal aperture of frame: Φ 33.5 mm.
4.The number of lenses that can be inserted into the left and right frames: 5 (the front is 3 and the back is 2).
5.Rotation degree of optical axis of lens in inner ring of frame: 360 °
6.The nonparallelism between the optical axis of the lens and the geometric axis of the frame: ≤ 2.5 °.
7.The difference between the optical center and the geometric center of the lens: ≤ 0.5 mm.
8.Displacement of the lens relative to the geometric center of the frame: ≤0.3 mm.
9.Adjustment range of nose pad: adjustable length: 0~25 mm; angle: arbitrary angle.
10.Adjustable length range of the left and right frame leg: 0~30 mm.
|Pupil distance adjustment range||binocular pupil distance range: 48 - 80 mm|
|minimum scale value||1 mm|
|Axis scale||left scale: 130 °~ 0 °~ 120 °; right scale: 50 °~ 180 °~ 60 °|
|Effective internal aperture of frame||Φ 33.5 mm|
|The number of lenses that can be inserted into the left and right frames||5 (the front is 3 and the back is 2)|
|Rotation degree of optical axis of lens in inner ring of frame||360 °|
|Adjustment range of nose pad:||adjustable length: 0~25 mm; angle: arbitrary angle|
|Adjustable length range of the left and right frame leg||0~30 mm|
