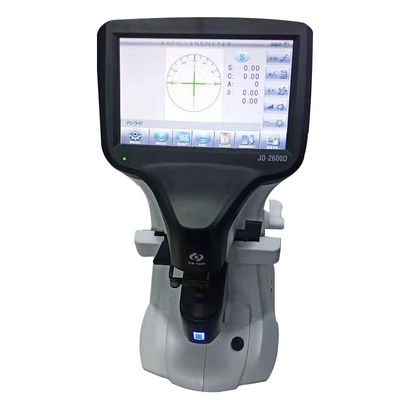

5.6 Inch TFT LCD Touch Screen Test Optical Lensometer

Place of Origin China
Certification CE, FDA
Model Number GD6049-I
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details 55*38*38cm; 10kgs. in strongest double cartons ,between with foam
Delivery Time 10-20 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 300pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Certification CE, FDA PD Available
Printer With UV Yes
Accuracy 0.01D Lens PC /CR-90/glass/contact Lens/Progressive
Pupil Distance 42mm ~ 82mm Display Touch Screen
High Light

LCD Touch Screen Test Optical Lensometer


TFT Optical Lensometer


5.6 Inch Screen Optical Lensometer

Leave a Message
Product Description

Optical Lensometer 5.6inch TFT LCD touch screen Test JD-2600D

SPHERE -25.00D-+25.OOD
Contact lens -25.00D-+25. ODD (BC=6.00-9.00) (0.01D/0.12D/0.25DSTEPS)
CYLINDER 0.00D-±10.00D(-,MIX,+} (0.01D/0.12D/0.25DSTEPS)
AXIS 0°-180°(1°STEPS)
ADD 0.00D-±10.00D (Add and Ad2) 0.00D-±10.00D (Add and Ad2)
PRISM 0.00 -10.00 (horizontal, vertical) (0.01D/0.12D/0.25DSTEPS)
PD measuring range 42~82mm
Diameter for sphere 20MM- 100MM
Diameter for contact lens 5MM
UV: 100% (-+15.00D-+25.00D, >20%)
Color LCD display 5.7inches TFT LCD Monitor

USB, RS232, Double-mode bluetooth

Power supply AC100(+-10%) -240(+-10%)V 50/60HZ 40VA
Dimensions 190(W) x 205(D)x418 (D)MM

4.5 KG



  • 5.6inch TFT LCD touch screen
Whole process of computer control & automatic reading. Highly sensitive optical path control
for measuring various types of lenses, with automatic control calibration procedure for tiny
deviation calibration during measurement. Full series with UV measurement, blue light
measurement, visible light measurement, virtual pupil distance ruler, preset prism value and
wireless Bluetooth function, optional PD measurement and thermal printing function.

5.6 Inch TFT LCD Touch Screen Test Optical Lensometer 0
5.6 Inch TFT LCD Touch Screen Test Optical Lensometer 1
