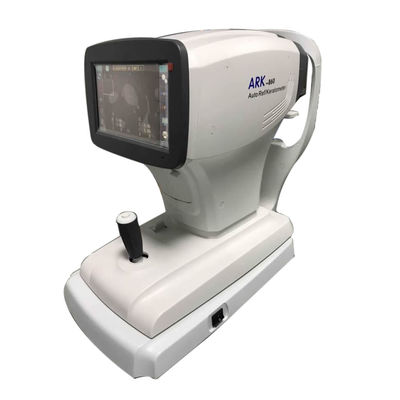

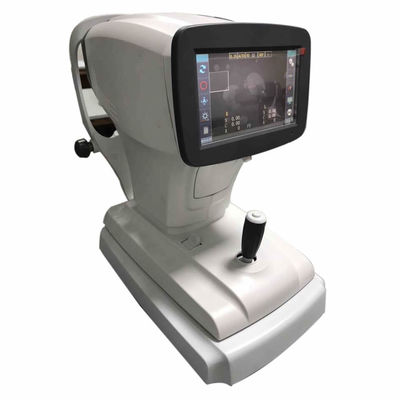

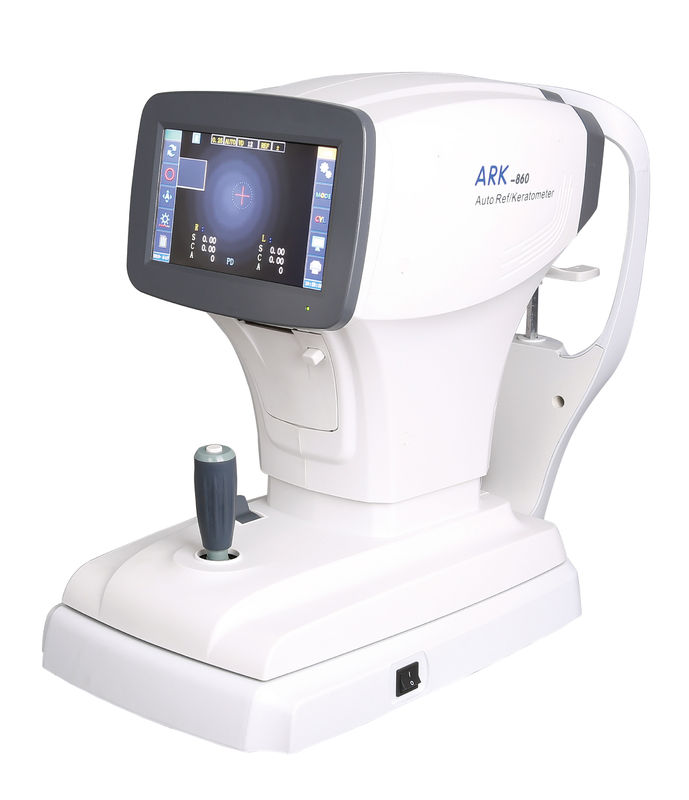

5.7" Display Auto Focusing Optometry Optical Refractometer

Place of Origin China
Brand Name XINYUAN
Certification CE, FDA
Model Number GRK8920
Minimum Order Quantity 1pcs
Price Negotiable
Delivery Time 10-20 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 100pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model Number ARK860(GRK8920) Display 5.7inch LCD Screen
SPH -20D~+20D CLY -10D~+10D
Printer Within Built Printer Pupil Distance 30~85mm
Vertex Distance 0mm, 12mm, 13.75mm Chart Auto Fog
High Light

Optometry Optical Refractometer


Auto Focusing Optical Refractometer


5.7" Display Optical Refractometer

Leave a Message
Product Description

Optical Refractometer ARK-860 with keratometer FDA and CE | optometry optical refractometer Auto Focusing | View


1.With Auto-tracing feature, operator can adjust the focus and alignment in up and down directions.
2.With Auto video taping feature, operator can take measurements automatically once equipment obtains satisfactory focus and alignment.
3.With Servo Chin-Rest, operator can adjust height of Chin-rest easily.
4.Display is tilt-adjustable.
5.Printer has a paper auto-cut feature

Ref/Keratometry, Flip Monitor 7" Touch Auto Trace SPHERE +/-20D CYLINDER +/-10.00


of measurement Sphere -20~+20D(VD=12) 0.125D step
Cylinder -10~+10D 0.125D step
Axis 0°~180° (1°step)
PD 30~85mm,1mm step
Vertex distance 0mm, 12mm, 13.75mm
Min Pupil Size ø2.0mm
Keratometry Radius of curvature 5.0~10mm(increment: 0.01mm)
Corneal power 33.00~67.00D(when corner equivalent refractive index is 1.337) (increment selectable from 0.12, 0.25D)
Corneal astigmatism 0.0~8.00D(increment selectable from 0.12,0.25D)
Axis 1~180°(increment:1°)
Corneal diameter 2.0~12.0mm(increment: 0.1mm)
Memory of data 10 measure value for each right and left eye
Others Chart Auto-fog
Display 5.7″ TFT LCD
Print Thermal print
Power supply 110V~220V±10% 50Hz 60VA
Dimension 480mmX270mmX445mm
Weight ~15.5kg


5.7" Display Auto Focusing Optometry Optical Refractometer 0

5.7" Display Auto Focusing Optometry Optical Refractometer 1

5.7" Display Auto Focusing Optometry Optical Refractometer 2

5.7" Display Auto Focusing Optometry Optical Refractometer 3

5.7" Display Auto Focusing Optometry Optical Refractometer 4
