Adjustable Optical Lensometer Sensitive LCD Touch Screen With Printer GD6023A

Basic Information
Place of Origin: China
Certification: CE, FDA
Model Number: GD6023A
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 55*36*45cm; 10kgs.
Delivery Time: 10-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300pcs/month
Detail Information
Certification: CE, FDA PD: Available
Printer: With UV: Yes
Accuracy: 0.01D Progressive Lens: Measurable
LCD Display Screen: Adjustable Speed Of Measurement: 0.1S
High Light:

automatic lensmeter


ophthalmic instruments

Product Description

Optical Lensometer Adjustable Sensitive LCD Touch Display Screen With Printer GD6023A



1. Measurement Screen

Easy to use with recognizable icons, D-903 provides a user-friendly graphical interface for an immediate understanding.

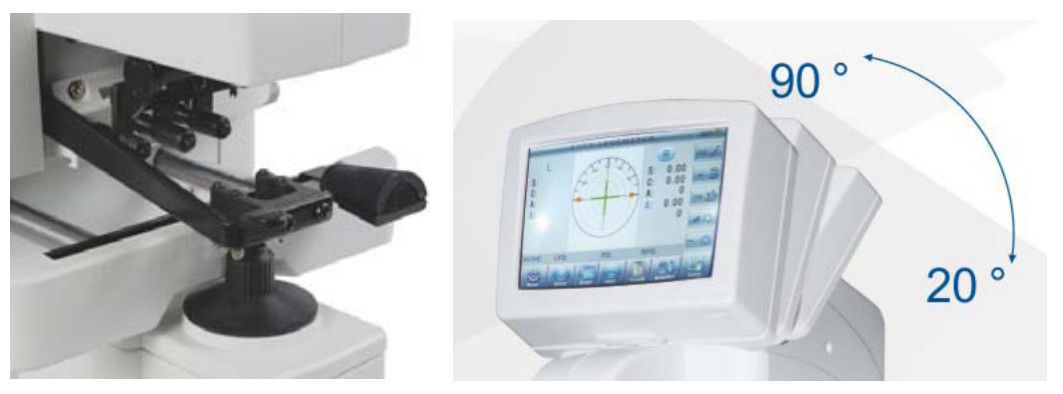

2. Adjustable LCD display screen

Tilting color screen provides you with clear view from any position such as sitting and standing.

3. Sensitive Touch LCD Display Screen

Just touch the screen can finish your measurement. Your operation could be easier and more convenient.

4. Progressive Measurement

Automatic measurement of progressive lenses, a graph helps the operator to improve accuracy and speed in the measurement of near and far vision.

5. Hi-speed UV measurement

Just holding the lens through the sensor, the display will easily indicate the UV measurement by the progress bar.



Range of measurement
Sphere 0 ~ ±25D 0.01/0.12/0.25D steps
Cylinder 0 ~ ±9.99D 0.01/0.12/0.25D steps
Axis 0 ~ 180º (1º steps)
ADD 0 ~ ±9.99D 0.01/0.12/0.25D steps
Prism Degree 0 ~ 15D 0.01/0.12/0.25D steps
Measurement Mode
Cylinder +, +/-, -
Prism X-Y, P-B
Contact lens Soft/hard
Measuring Mode Single/progressive/automatic recognition
Diameter of Lens 20~108mm
PD 40~90mm, 0.5mm steps
Speed of measurement 0.1s
Display TFT LCD (5.6”) 640*480
Printer With Thermal Printer
Dimension 222(L) * 161(W) * 372 (H) mm
Package 390(L) * 320(W) * 515 (H) mm
Weight About 5kgs
Power Supply

100~240V 50~60HZ


 Adjustable Optical Lensometer Sensitive LCD Touch Screen With Printer GD6023A 0
