|Type:||Galilean Stereoscopic Microscope||Magnification:||6X/10X/16X/25X/40X|
|Theory:||Biological Microscope||Illumination:||Halogen Lamp|
|Fixation Lamp:||Red LED||Illumination Bulb:||12V 50W Halogen Lamp|
ophthalmology slit lamp,
led slit lamp
Galilean Stereoscopic Microscope Ophthalmic Slit lamp with Halogen lamp 5 Magnifications GD9250A
1. This slit lamp uses the Converging Stereoscope type,and drum rotation .
2. With 5 magnification ,when reaching 40X magnification ratio ,the blood flow situation can be observed clearly from the blood vessels of the sclera .
3. With big light spot diameter ,the slit width can reach 14 mm ,observing the eyes more comprehensively
4. By using multi level coating process deal with the Optical glass, imaging becomes clear and bright and the view is widely open
5. Using importing illumination bulb ,with less heat ,brighter and light spot is more well-balanced .

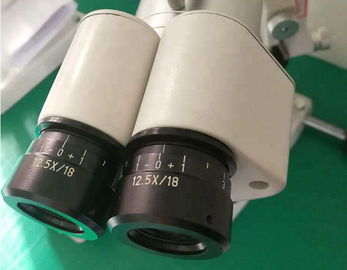

6. With high eyespots, large eyepiece, good stereo sense ,convenient to operate when observing .
7. Humanized designed for Armrest of the chin rest ,convenient for the patient
8. All the connector interface corresponds with the international accessories ,easy to update the system.
|Property of slit lamp||Microscope Type||Galilean stereoscopic microscope|
|Magnification selection||5 steps by drum rotation|
(Field of view )
|PD adjustment||52mm ~ 80mm|
|Diopter Adjustment||+5D ~ -5D|
|Base||Left and ritht move||110mm|
|Up and down move||30mm|
|Chin rest||Up and down move||80mm|
|Fixation lamp||red LED|
|Property of illumination||Slit width||0 ~ 14mm continuous (at 14mm,slit becomes a circle)|
|Slit height||1 ~ 14mm continuous|
Light spot diameter
0 ~ 1800 continuous
14mm ,10mm, 5mm , 3mm ,2mm ,1mm ,0.2mm ,1mm1-14mm continuous
|Filter||Heat absorption ,Grey ,Red-Free ,Cobalt Blue|
|Illumination bulb||12V 50W halogen lamp|
|Weight and size||
|Main dimension||550mm(L)× 430mm(W)× 780mm(H)|
