3D Patternless Auto Lens Edger With 8" Color Touch Screen

Place of Origin China
Brand Name KESHILONG
Certification CE
Model Number GD3230
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details 7.5x63.5x54cm, 45kgs.
Delivery Time 10-20 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 150pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lens Diameter 22~100mm Wheel Diameter 100mm
Wheel Speed 16.7m/s Power 400VA
Accessories Water Pump&Tube&Tank Lens CR39, Glass, PC Lenses
High Light

3D Patternless Auto Lens Edger

,

400VA Touch Screen Auto Lens Edger

,

CR39 Auto Lens Edger

Leave a Message
Product Description

Auto Lens Edger Top quality 3D Patternless Lens Edger FE-600+FC-600

1. Tracing system:


2. Integrating the optical scanning and center finding.

3. Accurately getting the size and shape of sample lens only needs 3 seconds.

4. Real-time image, leading and confirming if the lens arrived the most appropriate centric positioin

5. Automatically avoid the effect of lens degree, prism and artificial parallax

6. HR800*600, 8" color touch screen.

7. Simultaneously connect 2pcs FE-600 Auto edgers to build a machining center.

8. Easy operation ,low breakdown rate and quick service.

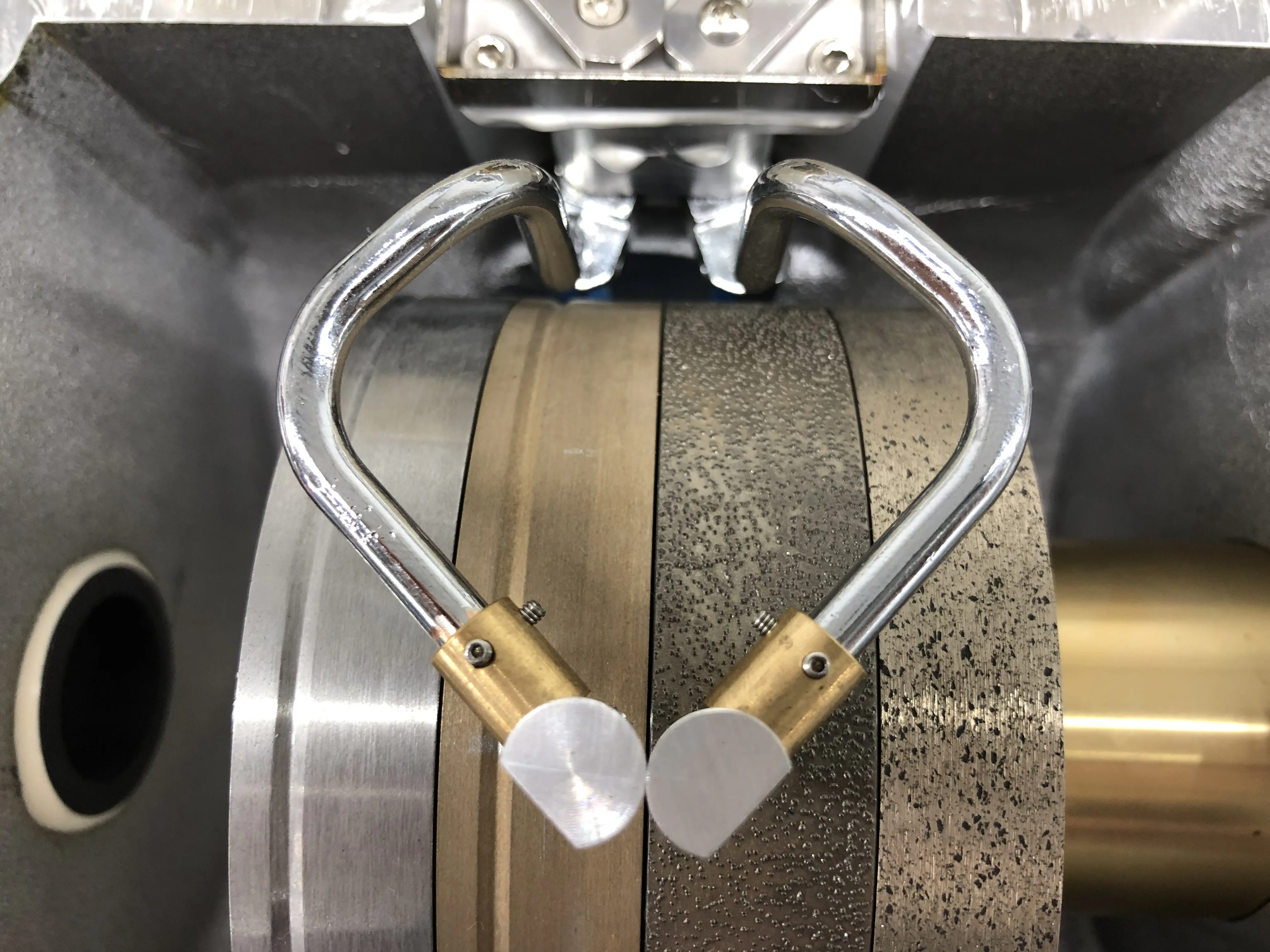

9. Edging syxtem:

10. A variety of material of lens can be processed , rapid edgeing to be molding.

11. Bevel or platband can be polished.

12. Various grinding pressure meet the demands of different lenses.

13. On-line function.





Specifications



Item

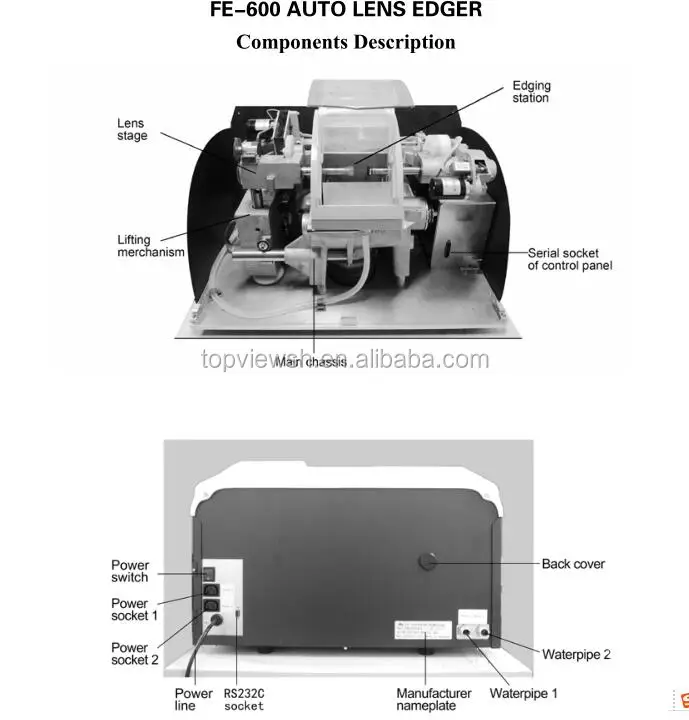

FE-600 Main Body
FC-600 Tracer center
Size
650*450*470mm
300*250*350mm
Weight
59kg
7.7kg
Voltage
AC220-110V (50/60Hz)
AC230-115V (50/60Hz)
Power
800W
30W





3D Patternless Auto Lens Edger With 8" Color Touch Screen 0

3D Patternless Auto Lens Edger With 8" Color Touch Screen 1
FC-600 Tracer center
Integrated optical scanning and central location
Only 3 seconds to obtain accurate frame lining shape and size
Real time imaging guidance to confirm the best center position
Automatically eliminate the lens degree, prism and the influence of the human parallax
High resolution 800*600 color 8 Inch Touch Screen
At the same time to connect two FE-600 fully automatic grinding machine
processing center
Simple operation, low failure, maintenance free
ADV all edge grinding machine needs a simple upgrade, and can be connected with the FC-600 scanner Center
3D Patternless Auto Lens Edger With 8" Color Touch Screen 2
3D Patternless Auto Lens Edger With 8" Color Touch Screen 3
3D Patternless Auto Lens Edger With 8" Color Touch Screen 4
3D Patternless Auto Lens Edger With 8" Color Touch Screen 5
3D Patternless Auto Lens Edger With 8" Color Touch Screen 6
3D Patternless Auto Lens Edger With 8" Color Touch Screen 7
3D Patternless Auto Lens Edger With 8" Color Touch Screen 8

3D Patternless Auto Lens Edger With 8" Color Touch Screen 9
